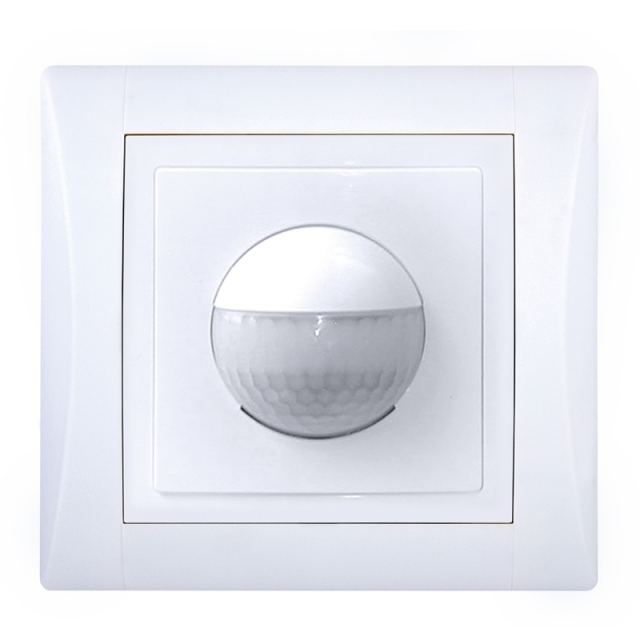

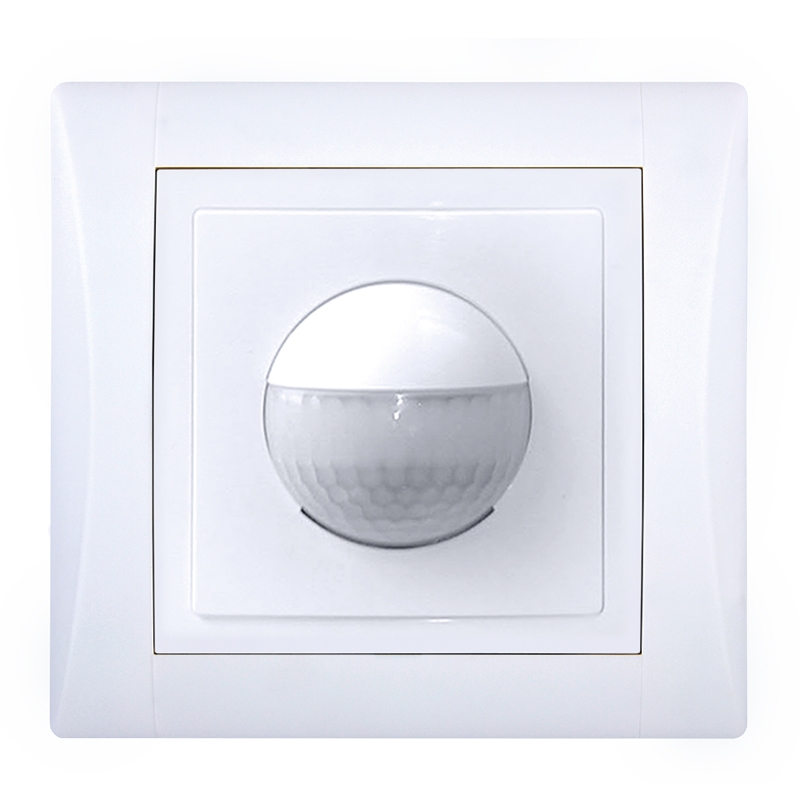

PIR sensor 180-TR

Description	Wall-mounted detector designed for switching staircase automatic lights. Triac design with 2-wire without zero-conductor. It guarantees perfect operation with LUXOMAT (R) SCT (up to 10 detectors per device).
Dimensions (h x w x d)	mounting depth 36 mm
Power	max. 200 mA / 230 V
Voltage	110 - 240 V AC, 50/60 Hz Provoz přes schodišťový automat (230 V)
Coverage angle	180° vertically
Dosah	max. 10 m
Twillight setting	2 - 2000 lux
Time setting	Impulse duration 0,1s
Protection	IP20 / class II

Motion senzor does not include the frame. Its needed to order the frame in configuration.

variants:

PREVIEW	CODE	VARIANT	Pieces
	DSE B4-B1001-000000	Cover: White Delivery time: On request
